Plugins, Helpers, and Mergers in Baseline Djerba

Plugin, Helper, and Merger directory

In the following section, we list the plugins that are in the Djerba mainline, show an example of what they could look like, and indicate what INI configuration must exist.

Many plugins pull their values from helpers, e.g. input_params_helper, tar_input_params_helper, and provenance_helper. This reduces the amount of configuration each specific plugin requires, to the point where many need only the section in the config file to fully work. See the end of this document for some example INI files.

Most of these plugins rely on internal OICR infrastructure, including lookup tables, APIs, and other services to work in an automatic way. If using these plugins outside of OICR, you will need to fully specify file paths in the INI. Supplying these values in the INI will override any lookup. However, this has not been extensively tested outside the institute. Please file a ticket if you encounter any issues.

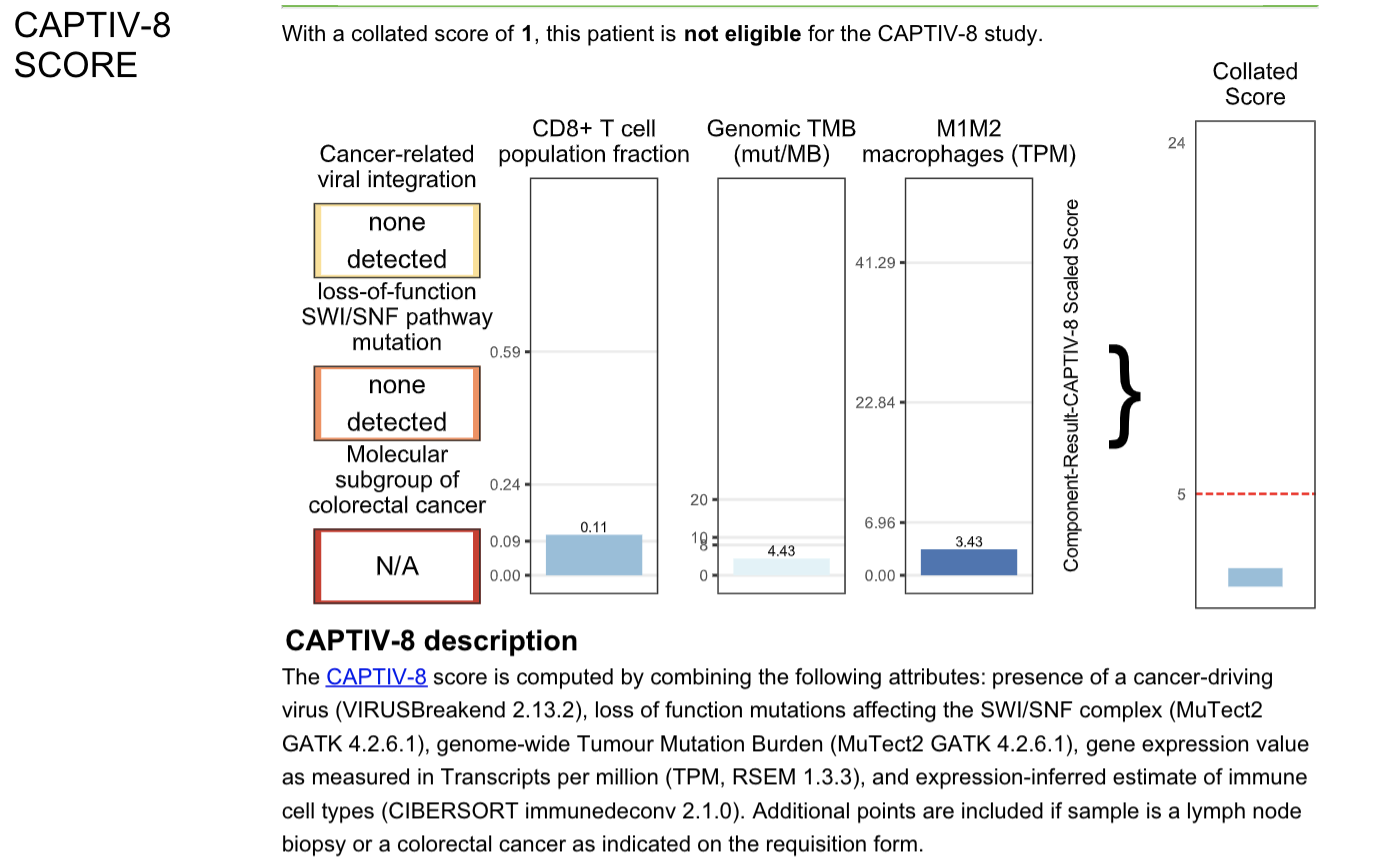

captiv8

Research-only plugin for generating CAPTIV8 scores.

Minimum required:

• no INI parameters required

Full INI:

tumour_id = NVRIA-PM-1234_RB-2746_A2
oncotree_code = HCC
site_of_biopsy = Liver
primary_cancer = Hepatocellular Carcinoma
rsem_file = NVRIA_1234_Lv_P_WT_NVRIA-PM-1234_RB-2746_A2.genes.results
cibersort_file = NVRIA_1234_Lv_P_WT_NVRIA-PM-1234_RB-2746_A2.immunedeconv_CIBERSORT-Percentiles.csv
maf_file = NVRIA_1234_Lv_P_WG_NVRIA-PM-1234_RB-2746_A2.mutect2.filtered.maf.gz
virus_file = NVRIA_1234_Lv_P_WG_NVRIA-PM-1234_RB-2746_A2.virusbreakend.vcf.summary.tsv
report_dir = report/
is_hemeotological_cancer = False

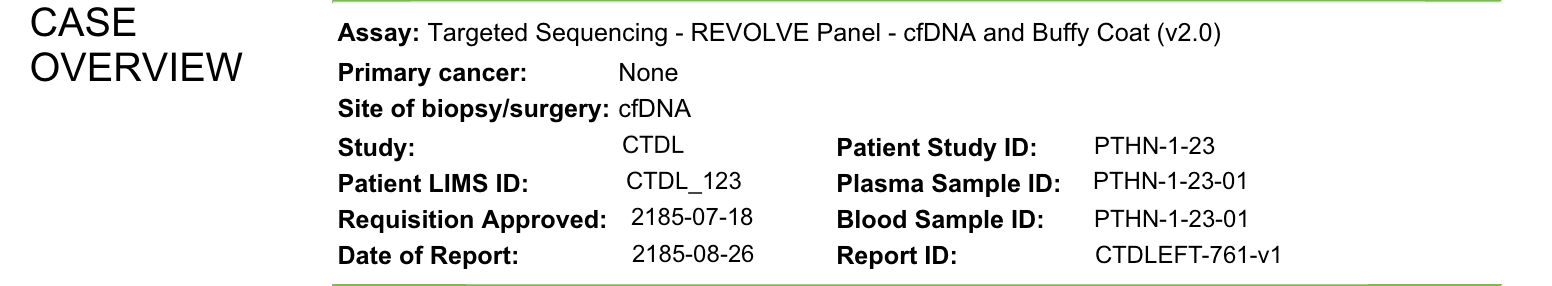

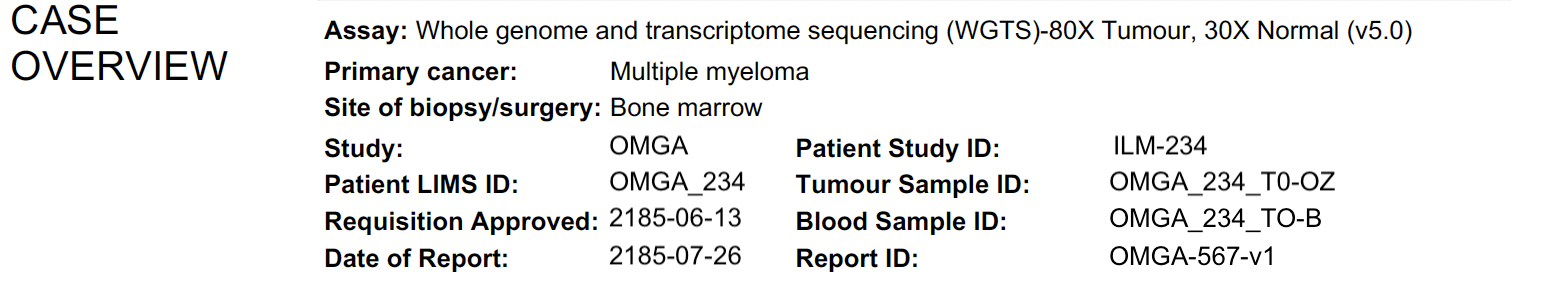

case_overview

Plugin to generate the Case Overview report section

WGTS

TAR

Uses input_params.json and/or sample_info.json for assay configuration.

assay = TAR
assay_description = Targeted Sequencing - REVOLVE Panel - cfDNA and Buffy Coat (v2.0)
primary_cancer = None
site_of_biopsy = cfDNA
donor = CTDL_123
study = CTDL
patient_study_id = PTHN-1-23
tumour_id = PTHN-1-23-01
normal_id = PTHN-1-23-01
report_id = CTDLEFT-761-v1
requisition_approved = 2185-07-18

cnv

Plugin for whole-genome CNV reporting using Sequenza (deprecated)

sequenza_path
sequenza_gamma
sequenza_solution
purity
purity_check
tumour_id
oncotree_code

core

The base Djerba plugin. Required!

author = John Sheppard
report_id = CTDLEFT-761-v1
report_version = 1
archive_name = djerba
archive_url = http://${username}:${password}@${address}:${port}
input_params = input_params.json
document_config = document_config.json

expression_helper

Helper to write expression data, for use by SNV/indel and CNV plugins.

Full INI:

tcga_data = RODiC/data
gep_reference = gep_reference.txt.gz
enscon = ensemble_conversion_hg38.txt
gene_list = targeted_genelist.txt
rsem_genes_results = OMGA_234_Bm_P_WT_OMGA-234-T0-OZ.genes.results
tcga_code = TCGA_ALL_TUMOR
tumour_id = OMGA-234-T0-OZ

failed_report

Creates a failed report section.

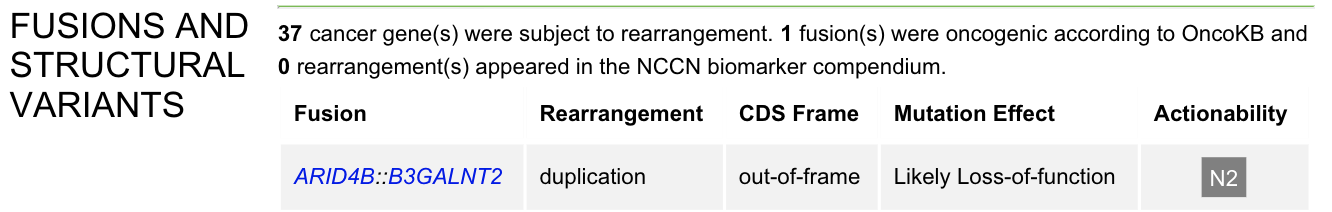

fusion

Plugin to generate the Fusions and Structural Variant report section using results from MAVIS and Arriva, as well as OncoKB.

Full INI:

mavis_path = OMGA_234_Bm_P_OMGA-234-T0-OZ.mavis_summary.tab
arriba_path = OMGA_234_Bm_P_WT_OMGA-234-T0-OZ.fusions.tsv
tumour_id = OMGA-234-T0-OZ
oncotree_code = PCM
entrez conv path = entrez_conversion.txt
minimum fusion reads = 20
apply cache = False
update cache = False
oncokb cache = oncokb_cache/scratch

gene_information_merger

When multiple plugins report actionable genes, this merger will assist in combining them together.

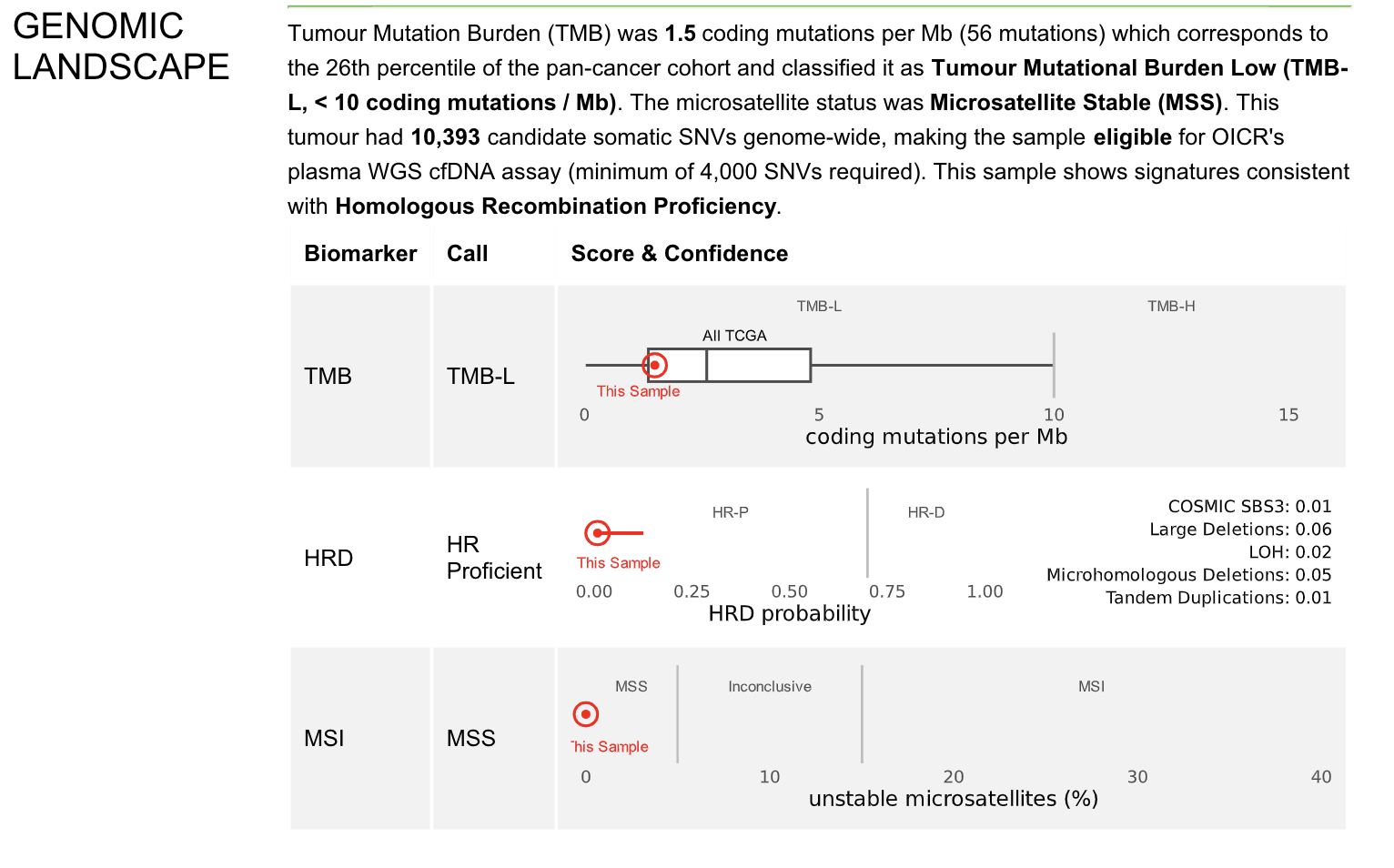

genomic_landscape

Plugin for genomic landscape section, use microsatellite instability, homologous recombination deficiency status, tumour mutation burden, and any circulating tumour DNA information to compare this tumour against others available in TCGA.

Full INI

tumour_id = OMGA-234-T0-OZ
oncotree_code = PCM
tcgacode = TCGA_ALL_TUMOR
purity = 0.81
msi_file = OMGA_234_Bm_P_WG_OMGA-234-T0-OZ.filter.deduped.recalibrated.msi.booted
ctdna_file = SNP.count.txt
hrd_path = OMGA_234_Bm_P_WG_OMGA-234-T0-OZ.signatures.json
sample_type = Methanol Fixed
oncokb cache = oncokb_cache/scratch
apply cache = False
update cache = False
clinical = True
supplementary = False

input_params_helper

Creates a JSON file input_params.json that has general purpose values for all non-TAR assays.

Assay can be specified by:

• Short name, which looks up in a table of known assays

• Full name – if this parameter is set manually, the short name is ignored Typically the short name will be used, but the full name is supported as an INI parameter in case assay names are introduced/changed at short notice

Full list of assays is available at src/lib/djerba/util/assays.py

Minimum INI for WGTS

assay = WGTS
donor = OMGA_234
oncotree_code = PCM
primary_cancer = Multiple myeloma
project = OMGA
requisition_approved = 2185-06-13
requisition_id = OMGA-567
sample_type = Methanol Fixed
site_of_biopsy = Bone marrow
study = OMGA
tcgacode = TCGA_ALL_TUMOR

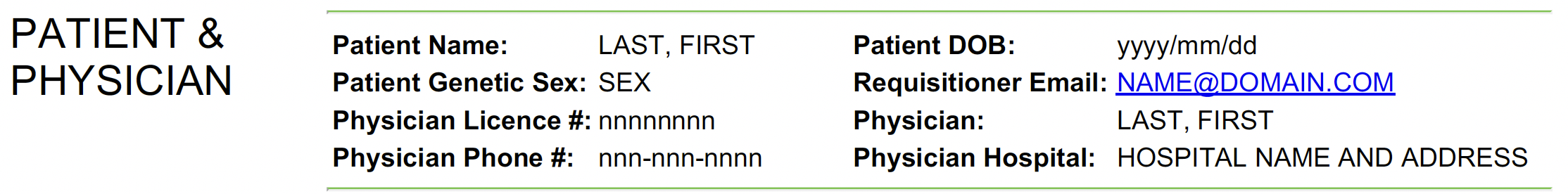

patient_info

Generate the “Patient & Physician Info” report section.

Complete

patient_name = LAST, FIRST
patient_dob = YYYY-MM-DD
patient_genetic_sex = SEX
requisitioner_email = NAME@domain.com
physician_licence_number = nnnnnnnn
physician_name = LAST, FIRST
physician_phone_number = nnn-nnn-nnnn
hospital_name_and_address = HOSPITAL NAME AND ADDRESS

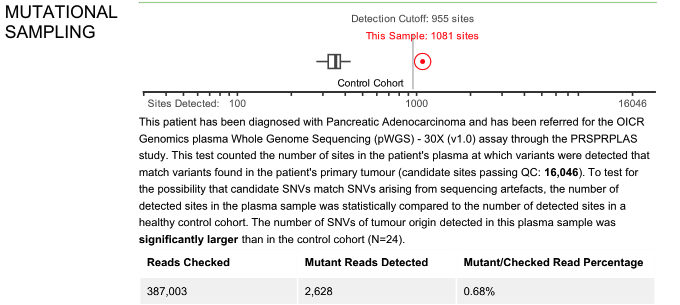

pwgs.analysis

Plasma whole genome Mutational Sampling section

Full INI:

results_file = MASS_67_Pl_T_PG_MASS-069_plasma.mrdetect.txt
vaf_file = MASS_67_Pl_T_PG_MASS-069_plasma.mrdetect.vaf.txt
hbc_file = MASS_67_Pl_T_PG_MASS-069_plasma.HBCs.csv

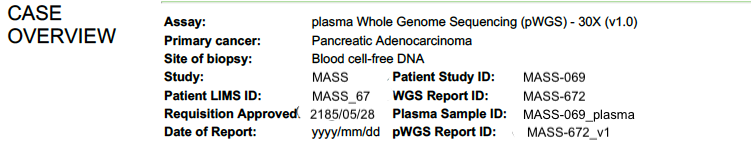

pwgs.case_overview

Plasma whole genome sequencing case overview section.

Partial INI:

primary_cancer = Pancreatic Adenocarcinoma
requisition_approved = 2185/05/28
wgs_report_id = MASS-672

Full INI

donor = MASS_67
group_id = MASS-069_plasma
patient_study_id = MASS-069
study_title = MASS

pwgs.sample

Plasma Whole Genome Sequencing Sample QC section

Full INI:

qcetl_cache = qcetl_v1
bamqc_results = MASS_67_Pl_T_PG_MASS-069_plasma_bamQC.bamQC_results.json
results_file = MASS_67_Pl_T_PG_MASS-069_plasma.mrdetect.txt
candidate_snv_count = SNP.count.txt
coverage = 31
median_insert_size = 165

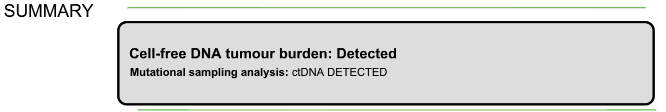

pwgs.summary

Plasma Whole Genome Sequencing Summary section

Full INI:

results_file = MASS_67_Pl_T_PG_MASS-069_plasma.mrdetect.txt

pwgs_cardea_helper

Provide:

requisition_id = MASS-EFT-673

Full INI:

cardea_url = https://cardea.gsi.oicr.on.ca/requisition-cases

pwgs_provenance_helper

Full INI:

provenance_input_path = vidarr_files_report_latest.tsv.gz
project = MASS
donor = MASS_67
provenance_id = MASS_67_Pl_T_nn_1-1_LB01-01

provenance_helper

contributes to the Case Overview Section for targeted reports

Creates a JSON file sample_info.json with general purpose values used by reports. For non-TAR reports only, has sample IDs and patient study ID. Similar to input_params.json produced by input_params_helper or tar_input_params_helper.

Possible INI:

tumour_id = PTHN-1-23-01
normal_id = PTHN-1-23-01
sample_name_whole_genome_tumour = None
sample_name_whole_genome_normal = None
sample_name_whole_transcriptome = None

Additional INI values

provenance_input_path = vidarr_files_report_latest.tsv.gz
project = CTDLEFT
donor = CTDL_123

report_title

Sets the title of the report

INI:

failed = False

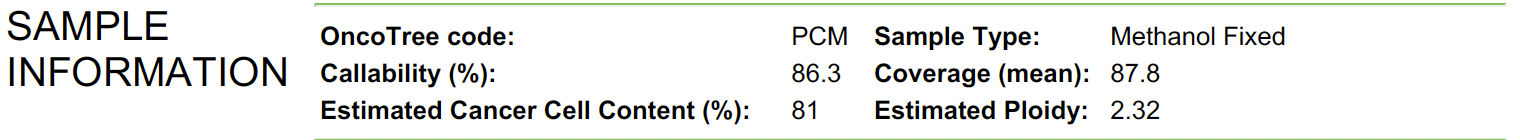

sample

Creates the sample information section in WGTS reports.

WGTS

oncotree_code = PCM
sample_type = Methanol Fixed
callability = 86.3
mean_coverage = 87.8
donor = OMGA_234
purity = 0.81
ploidy = 2.32
tumour_id = OMGA-234-T0-OZ

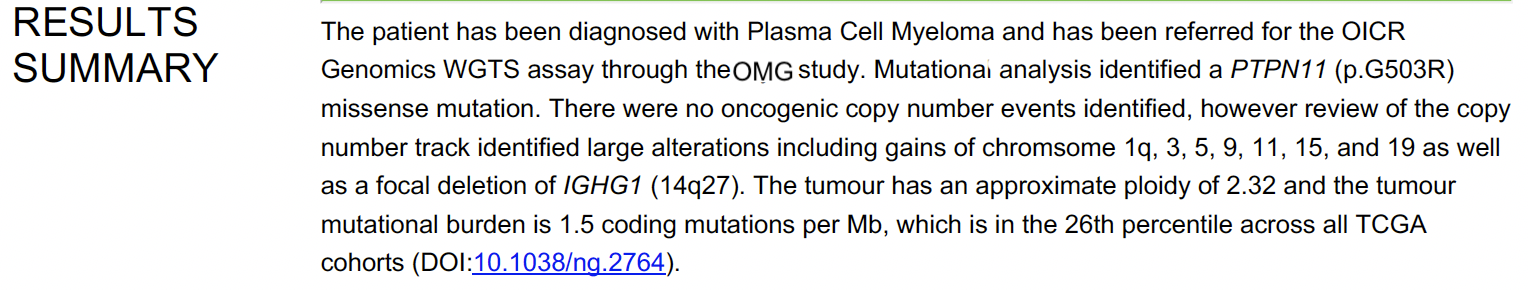

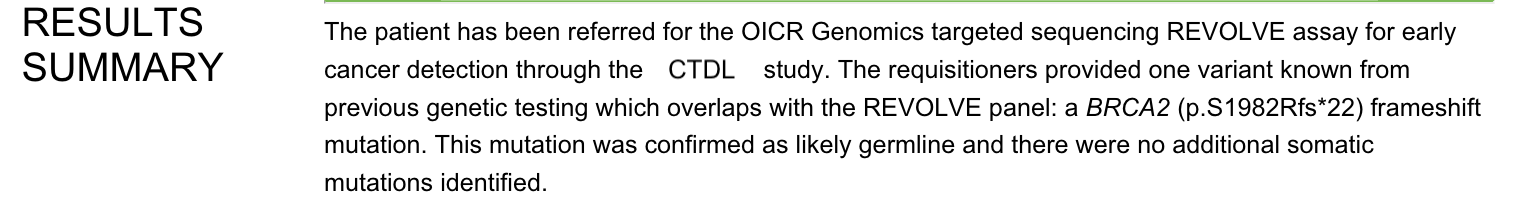

summary

Results Summary section

TAR

WGTS

summary_file = djerba/plugins/summary/summary_template.txt

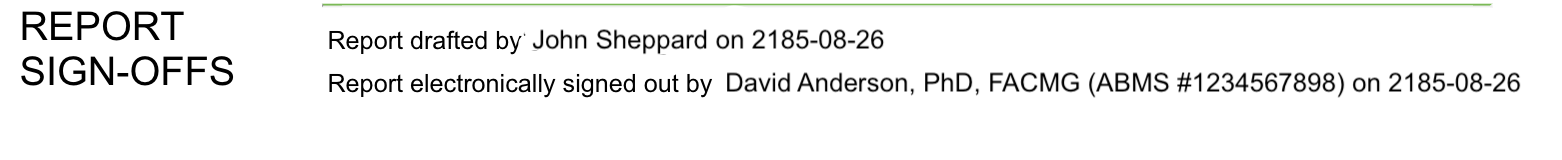

supplement.body

Report sign-offs section

assay = TAR / WGTS
report_signoff_date = 2185-08-26
user_supplied_draft_date = 2185-08-26
clinical_geneticist_name = David Anderson, PhD, FACMG
clinical_geneticist_licence = 1234567898
failed = False

tar_input_params_helper

Creates a JSON file input_params.json that has general purpose values for all TAR assays. For TAR only, also has sample IDs and patient study ID.

Assay can be specified by:

• Short name, which looks up in a table of known assays

• Full name – if this parameter is set manually, the short name is ignored Typically the short name will be used, but the full name is supported as an INI parameter in case assay names are introduced/changed at short notice

Full list of assays is available at src/lib/djerba/util/assays.py

Minimum INI for TAR:

assay = TAR
cbio_id = REVOLVE
donor = CTDL_123
known_variants = <em>BRCA2</em> (p.S1982Rfs*22)
normal_id = PTHN-1-23-01
oncotree_code = None
patient_study_id = PTHN-1-23
primary_cancer = None
project = CTDLEFT
requisition_approved = 2185-07-18
sample_type = cfDNA
site_of_biopsy = cfDNA
study = CTDL
tumour_id = PTHN-1-23-01
requisition_id = CTDLEFT-761

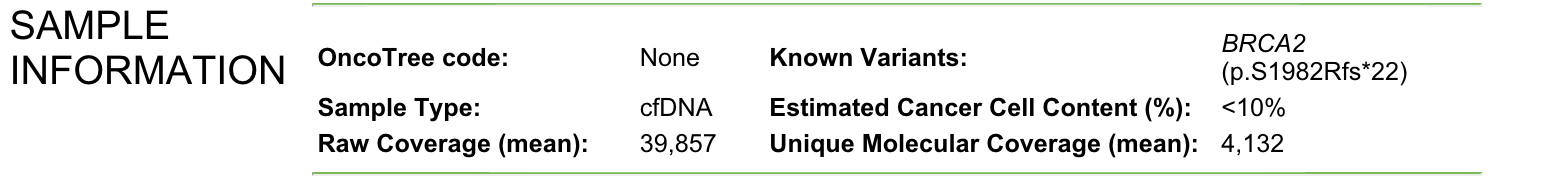

tar.sample

Sample Information Section for targeted reports

TAR

consensus_cruncher_file = allUnique-hsMetrics.HS.txt
consensus_cruncher_file_normal = allUnique-hsMetrics.HS.txt

Complete

group_id = PTHN-1-23-01
normal_id = PTHN-1-23-01
oncotree_code = None
known_variants = <em>BRCA2</em> (p.S1982Rfs*22)
sample_type = cfDNA
ichorcna_file = CTDL_123_06_LB01-04_metrics.json
raw_coverage = 39857
collapsed_coverage_pl = 4132
collapsed_coverage_bc = 2131

tar.snv_indel

SNVS and IN/DELs section

Provided

cbio_id = REVOLVE
maf_file = CTDL_123_Pl_T_TS_PTHN-1-23-01.merged.maf.gz
maf_file_normal = CTDL_123_Ly_R_TS_PTHN-1-23-01.merged.maf.gz

Complete

donor = CTDL_123
oncotree_code = None
assay = TAR
tumour_id = PTHN-1-23-01
normal_id = PTHN-1-23-01

tar.swgs

Shallow Whole Genome Sequencing section

Complete

donor = CTDL_123
oncotree_code = None
tumour_id = PTHN-1-23-01
seg_file = CTDL_123_06_LB01-04.seg.txt
clinical = True
supplementary = False

treatment_options_merger

Treatment options section

Complete

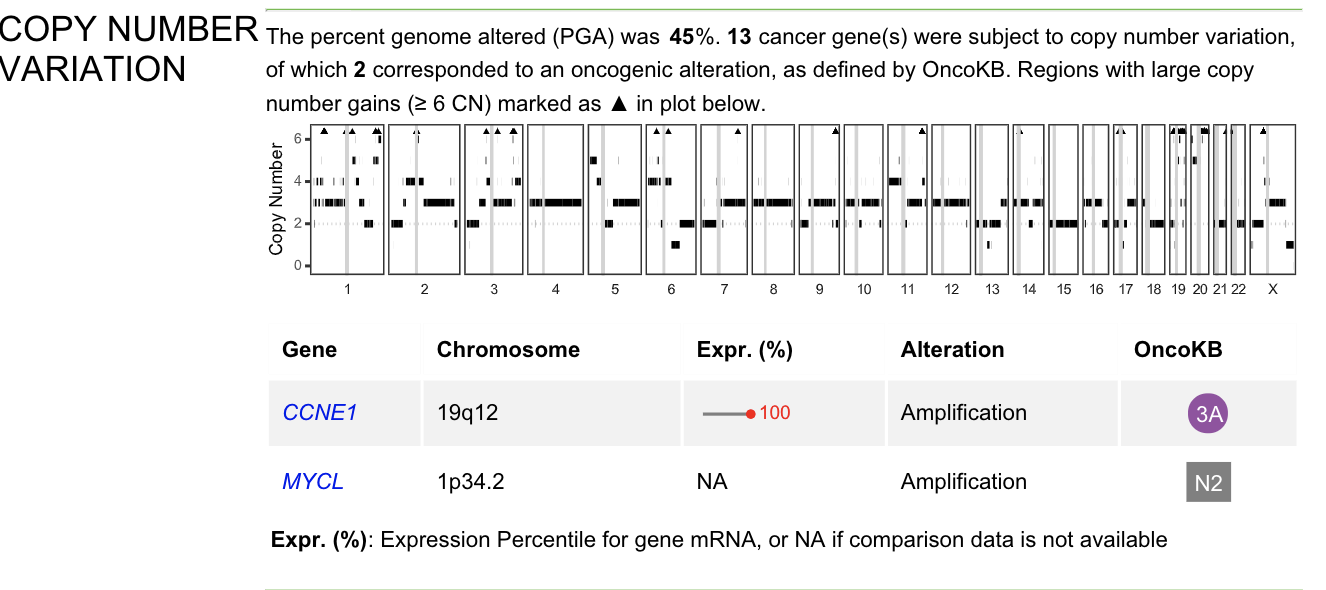

wgts.cnv_purple

purple_zip = OMGA_234_Bm_P_OMGA-234-T0-OZ.solPrimary.purple.zip
assay = WGTS
tumour_id = OMGA-234-T0-OZ
oncotree_code = PCM
whizbam_project = OMGA
oncokb cache = oncokb_cache/scratch
apply cache = False
update cache = False

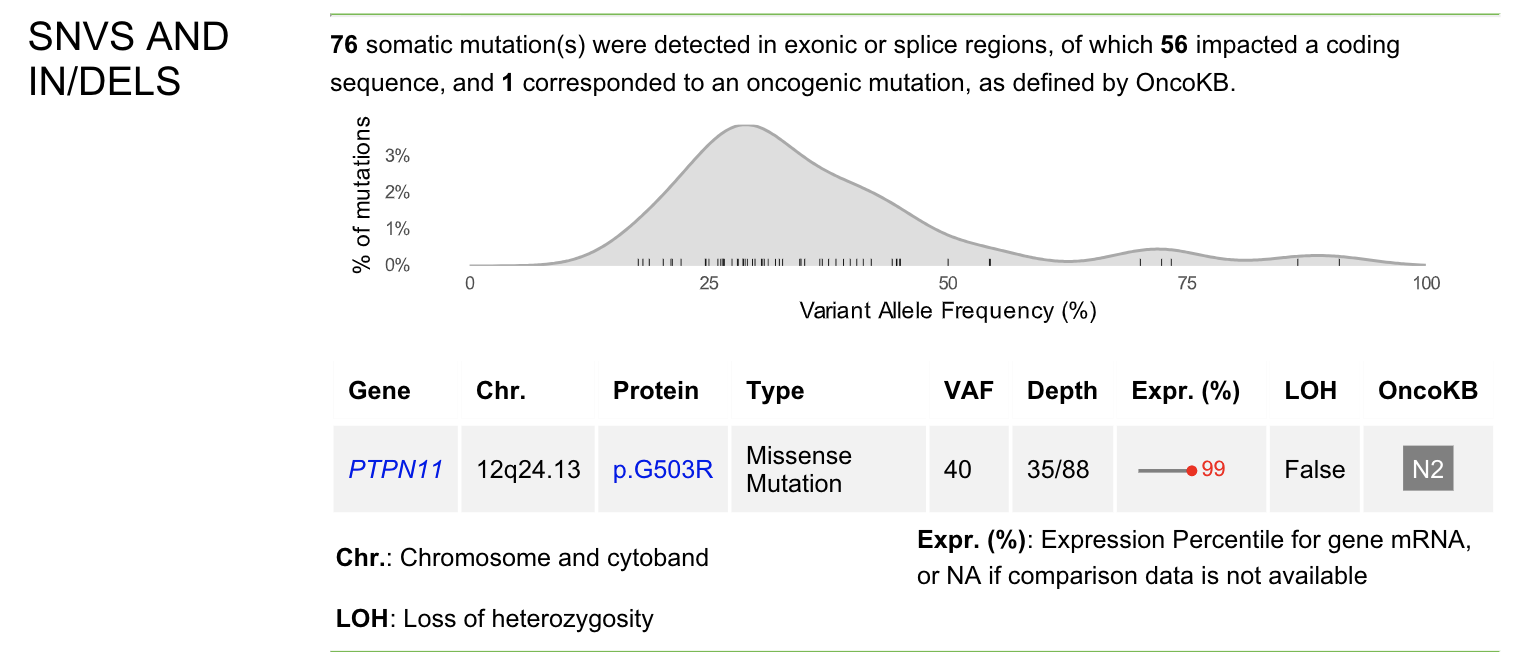

wgts.snv_indel

maf_path = OMGA_234_Bm_P_WG_OMGA-234-T0-OZ.mutect2.filtered.maf.gz
oncotree_code = PCM
tumour_id = OMGA-234-T0-OZ
normal_id = OMGA-234-T0-B
project = OMGA
whizbam_project = OMGA
oncokb cache = oncokb_cache/scratch
apply cache = False
update cache = False

Reserved Plugin prioritization and dependencies

Every plugin, helper, and merger has several reserved INI parameters which are discussed in plugin developer documentation here.

In short, there are three types of reserved attributes:

• attribute : tags applied to categorize plugins.

• depends_ : what other plugins or helpers this one depends on.

• _priority : sets the priority in configuring, extracting and rendering the plugin. Lower numbers have higher priority

For the existing plugins in the Djerba mainline, here are the attributes, dependencies and priorities.

module	attributes	depends_configure	depends_extract	configure_priority	extract_priority	render_priority
captiv8	research			3000	3000	3000
case_overview	clinical	provenance_helper		200	200	40
cnv	?
core				100	100	100
expression_helper		provenance_helper		1000	100
failed_report	?
fusion	clinical			900	900	900
gene_information_merger	clinical, supplementary			2000		2000
genomic_landscape	clinical			100	1000	500
input_params_helper				10	10
patient_info	clinical			100	100	30
provenance_helper				50	50
pwgs.analysis	clinical			200	200	200
pwgs.case_overview	clinical			100	100	100
pwgs.sample	clinical			160	160	160
pwgs.summary	clinical			130	130	130
pwgs_cardea_helper	clinical			10	10	10
pwgs_provenance_helper				50	50
report_title	clinical			10	10	10
sample	clinical			500	500	500
summary	clinical			400	400	400
supplement.body	clinical			1200	1200	1200
tar_input_params_helper				10	10
tar.sample	clinical			300	200	500
tar.snv_indel	clinical			600	600	600
tar.swgs	clinical			400	250	700
treatment_options_merger	clinical, supplementary		300		50
wgts.cnv_purple	clinical			80	700	800
wgts.snv_indel	clinical			700	800	700

Examples of configuration files

Plasma whole genome configuration example

[core]
author = Jane Sheppard

[report_title]

[patient_info]

[pwgs_provenance_helper]

[pwgs_cardea_helper]
requisition_id = MASS-EFT-673

[pwgs.case_overview]
primary_cancer = Pancreatic Adenocarcinoma
requisition_approved = 2185-05-23
wgs_report_id = MASS-672

[pwgs.summary]

[pwgs.sample]

[pwgs.analysis]

[supplement.body]

WGTS configuration example

[core]

[input_params_helper]
assay = WGTS
donor = OMGA_234
oncotree_code = PCM
primary_cancer = Multiple myeloma
project = OMGA
requisition_approved = 2185-06-13
requisition_id = OMGA-567
sample_type = Methanol Fixed
site_of_biopsy = Bone marrow
study = OMGA
tcgacode = TCGA_ALL_TUMOR

[provenance_helper]

[report_title]

[patient_info]

[case_overview]
assay = WGTS

[treatment_options_merger]

[summary]

[sample]

[genomic_landscape]

[expression_helper]

[wgts.snv_indel]

[wgts.cnv_purple]
purple_zip = OMGA_234_Bm_P_OMGA-234-T0-OZ.solPrimary.purple.zip

[fusion]

[gene_information_merger]

[supplement.body]

TAR configuration example

[core]
author = John Sheppard

[tar_input_params_helper]
assay = TAR
cbio_id = REVOLVE
donor = CTDL_123
known_variants = <em>BRCA2</em> (p.S1982Rfs*22)
normal_id = PTHN-1-23-01
oncotree_code = None
patient_study_id = PTHN-1-23
primary_cancer = None
project = CTDLEFT
requisition_approved = 2185-07-18
sample_type = cfDNA
site_of_biopsy = cfDNA
study = CTDL
tumour_id = PTHN-1-23-01
requisition_id = CTDLEFT-761

[provenance_helper]
tumour_id = PTHN-1-23-01
normal_id = PTHN-1-23-01
sample_name_whole_genome_tumour = None
sample_name_whole_genome_normal = None
sample_name_whole_transcriptome = None

[report_title]

[patient_info]

[case_overview]

[treatment_options_merger]

[summary]

[tar.sample]
consensus_cruncher_file = Tumor_allUnique-hsMetrics.HS.txt
consensus_cruncher_file_normal = Normal_allUnique-hsMetrics.HS.txt

[tar.snv_indel]
cbio_id = REVOLVE
maf_file = CTDL_123_Pl_T_TS_PTHN-1-23-01.merged.maf.gz
maf_file_normal = CTDL_123_Ly_R_TS_PTHN-1-23-01.merged.maf.gz

[tar.swgs]

[gene_information_merger]

[supplement.body]
